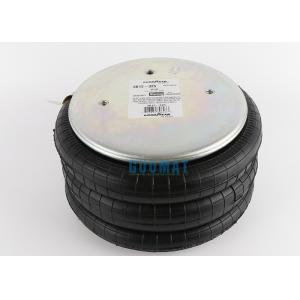

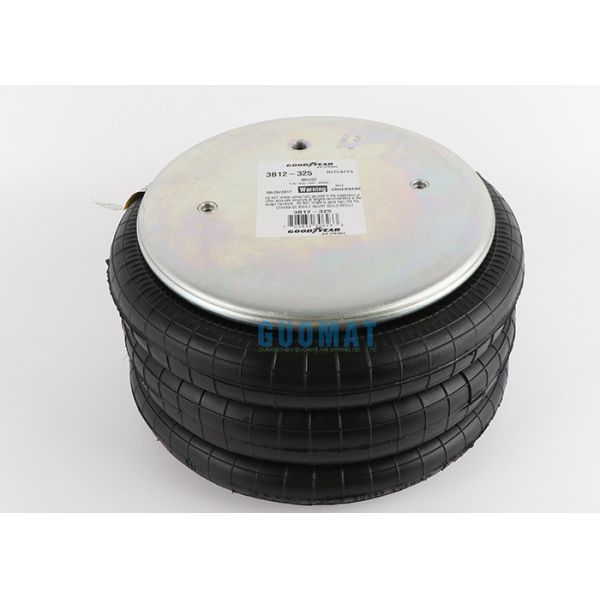

3B12-325 Industrial Air Spring Goodyear Original Triple Convoluted 578933103
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.5 kilograms
Package size: 33 x 33 x 22 cm
Model: 3B12-325
3B12-325 Goodyear Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 73 mm
❸ Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 457 mm
Minimum Height :120 mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Number of top plate holes / studs: 2
Top plate diameter: 9
Top plate C to C diameter: 6.2 inch
Base plate hole bolt Qyt: 2
Base plate diameter: 9 inch
Diameter of base plates C to C: 6.2 inch
Base plate part number:
Base plate alignment: parallel
Bumper: no
bracket:
Minimum height: 4.8 inch
Maximum height: 18 inch
3B12-304 Goodyear Cross others OEM
Firestone 8048
Firestone W01-358-8048
Firestone W01 358 8048
Firestone W013588048
Contitech FT 430-32 CI 1/4 NPT OS ; FT430-32
Goodyear 3B12-304,
Goodyear 3B12-306,
Goodyear 3B12-308
Goodyear® Goodyear air spring features
Goodyear® Goodyear air springs utilize the compressive elasticity of air, and are essentially different from metal springs such as leaf springs. It has excellent characteristics as a suspension spring. For example, the combined use with a control device keeps the height of the vehicle always constant or arbitrarily changed. It can also improve the vehicle's inclination by individually controlling the left and right air springs.
| Part Number | Top Plate Qty | Bottom Piston Qty | Top Plate Dia | Bottom Plate Dia. | Collapsed Height | Flexmember |
| 3B12-310 | 2 | 2 | 228.6 | 228.6 | 114.3 | 578-93-3-100 |
| 3B12-319 | 2 | 2 | 228.6 | 228.6 | 114.3 | 578-93-3-100 |
| 3B12-328 | 2 | 2 | 228.6 | 228.6 | 114.3 | 578-93-3-100 |
| 3B12-329 | 2 | 2 | 228.6 | 228.6 | 114.3 | 578-93-3-100 |
| 3B12-335 | 2 | 2 | 228.6 | 228.6 | 114.3 | 578-93-3-100 |
| 3B12-300 | 2 | 2 | 228.6 | 228.6 | 129.54 | 578-93-3-100 |
| 3B12-303 | 2 | 2 | 228.6 | 228.6 | 129.54 | 578-93-3-100 |
| 3B12-315 | 2 | 2 | 228.6 | 228.6 | 129.54 | 578-93-3-100 |
| 3B12-324 | 2 | 2 | 228.6 | 228.6 | 129.54 | 578-93-3-100 |
| 3B14-452 | 2 | 2 | 287.02 | 287.02 | 124.46 | 556-33-8-335 |
| 3B12-312 | 2 | 4 | 228.6 | 228.6 | 114.3 | 578-93-3-100 |
| 3B12-322 | 2 | 4 | 228.6 | 228.6 | 116.84 | 578-93-3-103 |
| 3B12-323 | 2 | 4 | 261.62 | 261.62 | 116.84 | 578-93-3-103 |
| 3B14-364 | 2 | 4 | 287.02 | 287.02 | 124.46 | 578-93-3-350 |
| 3B14-451 | 2 | 4 | 287.02 | 287.02 | 124.46 | 556-33-8-335 |
| 3B14-367 | 2 | 4 | 287.02 | 287.02 | 152.4 | 578-93-3-350 |
| 3B12-304 | 3 | 2 | 228.6 | 228.6 | 119.38 | 578-93-3-100 |
| 3B12-301 | 3 | 2 | 228.6 | 228.6 | 129.54 | 578-93-3-100 |
| 3B12-325 | 3 | 2 | 261.62 | 261.62 | 114.3 | 578-93-3-103 |
| 3B12-326 | 3 | 2 | 261.62 | 261.62 | 114.3 | 578-93-3-103 |
| 3B14-354 | 5 | 4 | 287.02 | 287.02 | 119.38 | 578-93-3-350 |
| 3B14-360 | 5 | 4 | 287.02 | 287.02 | 119.38 | 578-93-3-350 |
| 3B14-361 | 5 | 4 | 287.02 | 287.02 | 119.38 | 578-93-3-350 |
| 3B14-356 | 5 | 4 | 287.02 | 287.02 | 124.46 | 578-93-3-350 |
| 3B14-359 | 5 | 4 | 287.02 | 287.02 | 124.46 | 578-93-3-350 |
| 3B14-351 | 5 | 4 | 287.02 | 287.02 | 185.42 | 578-93-3-350 |
