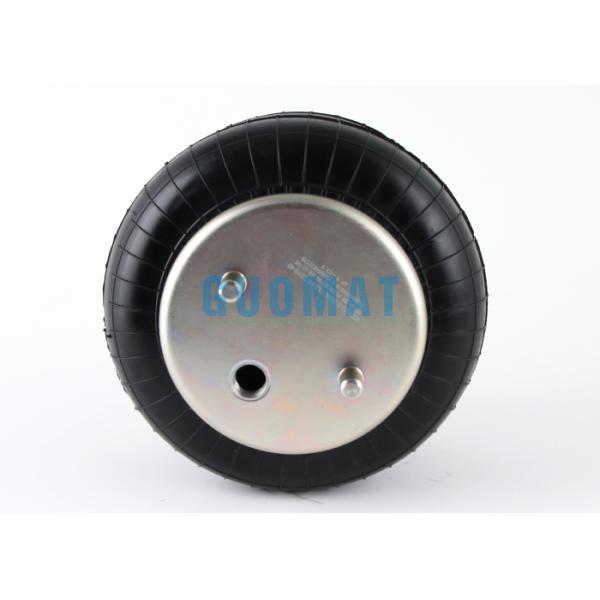

FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags

Name: FD 20019 315 Contitech Replacement Air Spring W013586905 Firestone Convoluted Air Bags
Brand: GUOMAT
Price: 59.9 USD

Quality FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags for sale

Brand Name : GUOMAT

Model Number : 2B6905

Certification : ISO/Ts16949:2009

Place of Origin : Guangzhou, China

MOQ : 6pcs

Price : $59.9-69.9/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10,000 Per Week

Delivery Time : 5-8 Working Days

Packaging Details : Carton packaging or packaging according to customer requirements

Spring Material : Natural Rubber

Quality : 100 % Tested

Fuction : Reduce Shock

Warranty : 12 Months

Firestone : W01-358-6905

Goodyear : 2B9-206

Stroke : 81mm-274mm

Buffer Block : With

Contact Now

FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags

Product Description

Brand: GUOMAT

Model No.: 2B6905

Bellows No.: 2B200

Manufacturer Warranty: 1 Year

Material: Rubber and Steel

Condition: Brand New

Packing: Carton/Pallet

Cross Reference Number

Firestone	W01-358-6905
Contitech	FD 200-19 315
Goodyear	ZB9-206/209
Goodyear	578923200/2
Triangle	6325/4315
EZ Ride	8030120
Dayton	3546905
Leland	Sc2071
Navistar	1685175C1
Hendrickson	458431
Hendrickson	S3518/S5270
Ridewell	1003586905C
SAF Holland	57006905
Tuthill	6389
Watson&Chalin	As0020
Silent Drive	As6882

Technical Data

❶Nut / Blind Nut

Center Distance Between Threaded Holes and Air Holes: 38.5mm

Screw Center Distance of Top Cover Plate : 89 mm

Screw Center Distance of Bottom Cover Plate : 89 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

❸ Cover Plate

Top Cover Plate Diameter:160 mm

Bottom Cover Plate Diameter: 160 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 251.5 mm

The Working Stroke : MAX 274 mm to MIN 81 mm

Maximum Height : 274 mm

Minimum Height :81 mmx

Compression Height : 193 mm

❺ Bumper block / Buffer block

With Bumper Block

❻ Girdle Hoop / Girdle Ring

Without Girdle Hoop

The related picture of 2B6905
