W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock
Product Description
| Item | Cab Air Shock Absorber |
| Model Number | G7059 |
| Size | Standard Size |
| Car Make | For Truck |
| Position | Rear |
OEM Number
FIRESTONE W02-358-7059
FIRESTONE W02 358 7059
FIRESTONE W023587059
FIRESTONE Wo2-358-7059
FIRESTONE Wo2 358 7059
FIRESTONE Wo23587059
W02-358-7059 ABSZ70-7059 00125724 7059 32466301 32803501 W02N190759

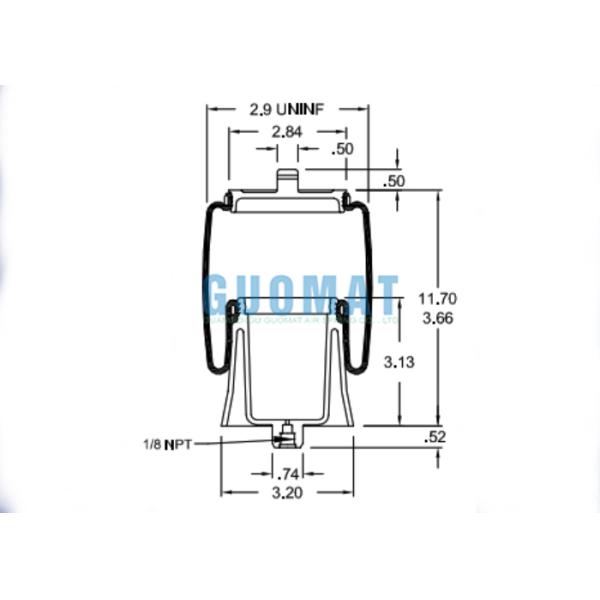

Technical Data
Maximum Height: 11.7"
Minimum Height: 3.66''
Outer Diameter: 2.9"
Top Cover Diameter: 2.84"
Bottom Piston Diameter: 3.20"
Bottom Piston Height: 3.13"
Air Fitting: 1/8NPT
How to Install a Truck Cab Air Spring
Step 1: Lift & Secure the Cab
Use the truck's cab tilt mechanism to fully raise the cab.
THIS IS NON-NEGOTIABLE: Immediately place sturdy support stands or solid wood blocks under the cab's main frame. Never rely solely on the hydraulic lift cylinder. This is your primary safety backup.
Step 2: Replace the Air Spring
Release air pressure: Locate and disconnect the air line from the old air spring. You may hear a hiss as pressure escapes.
Remove the old unit: Unbolt the top and bottom mounting bolts. Some wiggling or gentle prying might be needed to free it.
Install the new one: Position the new air spring. Hand-tighten the new mounting bolts to ensure they thread correctly.
Reconnect: Push the air line onto the new air spring's fitting until it clicks and locks securely.
Step 3: Test for Leaks & Final Check
Carefully remove the support stands and slowly lower the cab.
Start the engine to inflate the air springs. The cab should rise to its normal height.
Leak Test: Mix soap and water and spray it on the air line connection and the air spring itself. Look for bubbles, which indicate a leak that must be fixed.
Go for a short test drive to ensure stability and listen for unusual noises.
W02-358-7076 Max.H 11.25'' Min H 2.4''
W02-358-7054 Max.H 13.29'' Min H 4.04''
W02-358-7098 Max.H 13.40'' Min H 4.00''
W02-358-7040 Max.H 13.56'' Min H 4.04''
