W01-M58-7894 Firestone Double Convoluted Air Bellows 2B9-287 Goodyear Air Spring Replacement
Product Description
Item Name: Double Convoluted Air Spring
Brand: GUOMAT
Model No.: 2B67894
Bellows No.: 2B 200
Manufacturer Warranty: 1 Year
Material: Rubber and Steel
Condition: Brand New
Packing: Carton/Pallet
Cross Reference Number
FIRESTONE NUMBER: 20F
FIRESTONE NUMBER: 7894
FIRESTONE NUMBER: W01M587894 / WO1M587894
FIRESTONE NUMBER: W01-M58-7894 / WO1-M58-7894
FIRESTONE NUMBER: W01 M58 7894 / WO1 M58 7894
CONTITECH NUMBER: FD200-19 P04
CONTITECH NUMBER: FD 200-19 P04
CONTITECH NUMBER: FD200-19 P04 1/4
CONTITECH NUMBER: FD 200-19 P04 1/4
CONTITECH NUMBER: FD200-19 P04 1/4 M10
CONTITECH NUMBER: FD 200-19 P04 1/4 M10
CONTITECH NUMBER: FD 200-19 P04 / 895N / 72044
GOODYEAR NUMBER: 2B9-287
GOODYEAR NUMBER: 2B 9-287
GOODYEAR NUMBER: 2B9 287
GOODYEAR NUMBER: 2B 9287
GOODYEAR NUMBER: 578-92-3-211
GOODYEAR NUMBER: 578 92 3 211
GOODYEAR NUMBER: 578923211
DUNLOP NUMBER: S09208
PHOENIX NUMBER: SP 2B12R5
PHOENIX NUMBER: SP2B12R5
VIBRACOUSTIC NUMBER: VSP2B12R-5
VIBRACOUSTIC NUMBER: V SP 2B 12 R-5
SAF: 4.229.1004.00
Pirelli: T2086660
Taurus: Kf216
Airkraft: 113549
Grannung: 15599
Kogel: 6501706
Kogel: 6502824
Scania: 1319761
Scania: 1723523
Scania: 1387289
Scania: 1319761
Scania: 1387283
SAF: 1600 4.229.1004.00
Product Size Data Parameters
| Maximum outer diameter Natural | 251mm / 9.9 '' |
| Outer diameter | 224mm / 8.8'' |
| Maximum height | 260mm / 10.2'' |
| Minimum height | 75mm / 3.0'' |
| Cover plate diameter | 160mm / 6.3'' |
| Air Fitting | G1/4 |
| Threaded Hole | M10X1.5 |
| Center distance between threaded holes | 89mm / 3.5'' |
20FY Firestone Air Bellows
| Style No. | Part No. | Weight(KG) | Cross Refer No. |
| 20FY | W01-M58-7756 | 3.18 | MERCEDES A 942 327 06 01 HENDRICKSON SH 505613 |
| 20FY | W01-M58-7887 | 3.21 | SCHMITZ 016 010 ROR 2122 2663 ROR 2122 1395 |
| 20FY | W01-M58-7888 | 3.42 | SCHMITZ 016 793 WEWELER US 06910C WEWELER US 06910F |
| 20FY | W01-M58-7894 | 3.16 | SAF HOLLAND 4.229.1004.00 |

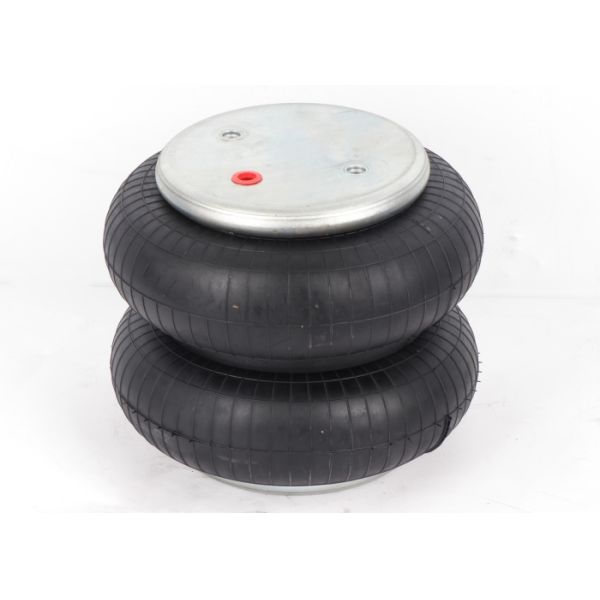

The Related Picture of 2B7894
