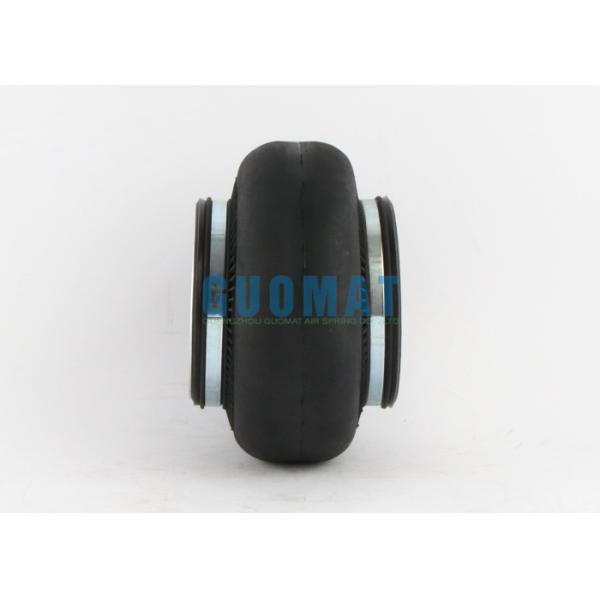

GUOMAT 120mm Single Convoluted Industrial Air Spring 1K176120

Brand Name : GUOMAT

Model Number : 1K176120

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 5

Price : $59.9-69.9/PC

Payment Terms : L/C,D/A,D/P,Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Structure : Single Convoluted

Item Name : Industrial Air Spring

Trademark : GUOMAT

Warranty : 1 Year

Type : Gas-Filled

Natural Height : 120mm

Air Hole : G1/4

Spring Weight : 2.1KG

Contact Now

1K176120 GUOMAT Single Convoluted Type 120mm Design Height Industrial Air Lift Bag

Product Information

Parameter Description
Brand GUOMAT
Product Type Industrial Air Spring
Model Number 1K176120
Product Name Industrial Air Spring / Air Bellow
Primary Material High-Strength Rubber
Operating Medium Compressed Air (Dry, Lubricated)
Temperature Range Standard -30°C to +70°C
Pressure Range 2 - 7 bar
Mounting Type Single Convoluted
Application Industrial Machinery, Vibration Isolation, Suspension Systems, Precision Equipment Platforms
Warranty 12 Months

Cross Reference Numbers

GOODYEAR: 1B7-544

GOODYEAR: 1B 7-544

GOODYEAR: 1B7 544

GOODYEAR: 1B 7 544

GOODYEAR: 1B7544

GOODYEAR: 1B 7544

Enidine Inc. YI-1B7-544

1K176120 Technical Data

Nominal Diameter

0.7 MPa, Maximum OD

 Stroke Range Weight
Minimum Compression Height Safe Extended Height
136mm 195mm 55mm 130mm 2.1kg

Maximum outer diameter: 195mm
Top cover diameter: 105mm
Top cover threaded holes: 2 M8 x 15mm
Top cover threaded holes center-to-center distance: 70mm
Top cover air holes: G1/4
Bottom cover diameter: 105mm
Bottom cover threaded holes: 2 M8 x 15mm
Bottom cover threaded holes center-to-center distance: 70mm
Design height: 120mm

Why choose GUOMAT air springs?

  • Competitive pricing: Our prices are competitive and offer excellent value for money.
  • Excellent vibration isolation: We actively dampen and absorb over 90% of disturbing impact energy and vibration. This protects your high-value equipment from damage, reduces ambient noise, creates a safer workplace, and significantly improves end-product quality by eliminating environmental disturbances.
  • Excellent durability and a wide range of performance: Built for real-world applications. Our springs are made of high-strength rubber materials to withstand extreme industrial environments.

2B8-550 579-92-3-530

2B7-548 579-92-3-526

2B7-542 579-92-3-525

2B7-541 579-92-3-525

2B7-540 579-92-3-525

2B6-535 579-92-3-515

2B6-530 579-92-3-510

1B8-564 579-91-3-532

1B5-510 579-91-3-501

2B14-479 578-92-3-356

2B14-476 578-92-3-356

2B14-470 578-92-3-356

2B14-462 578-92-3-356

2B14-383 578-92-3-356

2B14-365 578-92-3-356

2B14-363 578-92-3-356

2B14-362 578-92-3-356

2B14-473 578-92-3-353

2B14-367 578-92-3-353

2B14-366 578-92-3-353

2B14-360 578-92-3-353

2B14-359 578-92-3-353

2B14-356 578-92-3-353

2B14-355 578-92-3-353
