OEM Standards S-160-2R/SC-160-2R YOKOHAMA Punching Press Air Spring Air Lift Bag
OEM Cross reference:
GUOMAT Part No.: F-160-2
YOKOHAMA S-160-2R
YOKOHAMA S 160 2R
YOKOHAMA S-160-2
YOKOHAMA S 160 2
YOKOHAMA S160-2R
YOKOHAMA Air Spring SC-160-2R
YOKOHAMA Air Spring SC 160 2R
YOKOHAMA Air Spring SC1602R
Specifications and Detailed Technical Parameters: F-300-2
Model Size: F-160-2
Design Height: 98(mm)
Max. Height: 148(mm)
Min Height: 53(mm)
Common Maximum Travel(mm): ±35
Compression Max. Outside Diameter (mm): 220(mm)
Effective Area(cm2): 200cm2
Volume(L): 2.1
Load(KN): 9.8
Dynamic Spring Constant(n/mm): 255
Natural Vibration Frequency(Hz): 2.5
Maximum Internal Pressure (MPA): 0.88
Internal Pressure Failure(MPA): 2.9-3.9
A punch press air spring, also commonly known as an air cushion, is a precision elastic component that uses air as the elastic medium. Installed inside the stamping die, it provides a strong, stable, and controllable spring force for the die's pressing, unloading, and ejection operations.
Frequently Asked Questions?
| 1. Q: How to order ? A: Step 1, please tell us what model and quantity you need; Step 2,then we will make a PI for you to confirm the order details; Step 3,when we confirmed everything ,you can arrange the payment; Step 4,finally we deliver the goods within the stipulated time. |
| 2. Q: When will make delivery ? A: Delivery time is 2-8woring days. |
| 3. After-sales service 1 year warranty for all kinds of products; If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service. |
| 4. Payment T/T,Western Union,L/C |
| 5. Transportation Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight. |
GUOMAT F TYPE AIR SPRING CATALOGUE
| GUOMAT NO. | YOKOHAMA NO. | YOKOHAMA NO. |
| F-600-1 | S-600-1R | SC-600-1R |
| F-600-2 | S-600-2R | SC-600-2R |
| F-600-3 | S-600-3R | SC-600-3R |
| F-600-4 | S-600-4R | SC-600-4R |
| F-600-5 | S-600-5R | SC-600-5R |
| F-550-2 | S-550-2R | SC-550-2R |
| F-550-1 | S-550-1R | SC-550-1R |
| F-500-2 | S-500-2R | SC-500-2R |
| F-500-3 | S-500-3R | SC-500-3R |
| F-500-4 | S-500-4R | SC-500-4R |
| F-500-5 | S-500-5R | SC-500-5R |
| F-450-1 | S-450-1R | SC-450-1R |
| F-450-2 | S-450-2R | SC-450-2R |
| F-450-3 | S-450-3R | SC-450-3R |
| F-450-4 | S-450-4R | SC-450-4R |
| F-450-5 | S-450-5R | SC-450-5R |
| F-400-2 | S-400-2R | SC-400-2R |
| F-400-3 | S-400-3R | SC-400-3R |
| F-400-4 | S-400-4R | SC-400-4R |
| F-400-5 | S-400-5R | SC-400-5R |
| F-350-1 | S-350-1R | SC-350-1R |
| F-350-2 | S-350-2R | SC-350-2R |
| F-350-3 | S-350-3R | SC-350-3R |
| F-350-4 | S-350-4R | SC-350-4R |
| F-300-1 | S-300-1R | SC-300-1R |
| F-300-2 | S-300-2R | SC-300-2R |
| F-300-3 | S-300-3R | SC-300-3R |
| F-300-4 | S-300-4R | SC-300-4R |
| F-240-4 | S-240-4R | SC-240-4R |
| F-240-3 | S-240-3R | SC-240-3R |
| F-240-2 | S-240-2R | SC-240-2R |
| F-240-1 | S-240-1R | SC-240-1R |
| F-220-4 | S-220-4R | SC-220-4R |
| F-220-3 | S-220-3R | SC-220-3R |
| F-220-2 | S-220-2R | SC-220-2R |
| F-200-2 | S-200-2R | SC-200-2R |
| F-200-3 | S-200-3R | SC-200-3R |
| F-200-4 | S-200-4R | SC-200-4R |
| F-160-1 | S-160-1R | SC-160-1R |
| F-160-2 | S-160-2R | SC-160-2R |
| F-160-3 | S-160-3R | SC-160-3R |
| F-160-4 | S-160-4R | SC-160-4R |
| F-120-4 | S-120-4R | SC-120-4R |
| F-120-3 | S-120-3R | SC-120-3R |
| F-120-2 | S-120-2R | SC-120-2R |

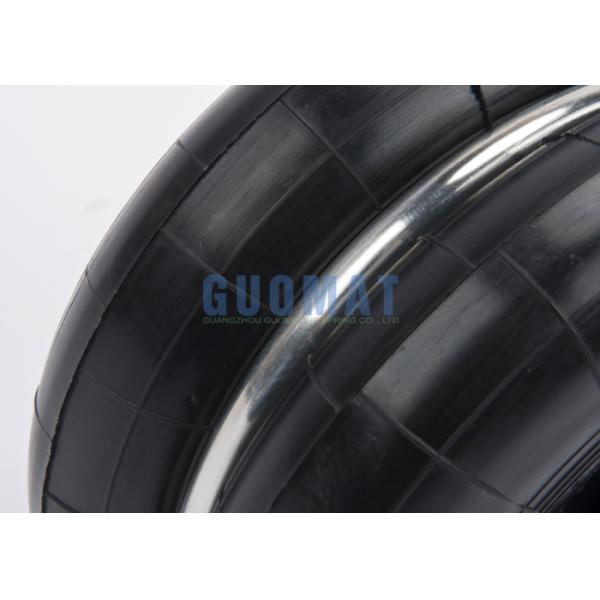

The Related Picture of F-160-2
