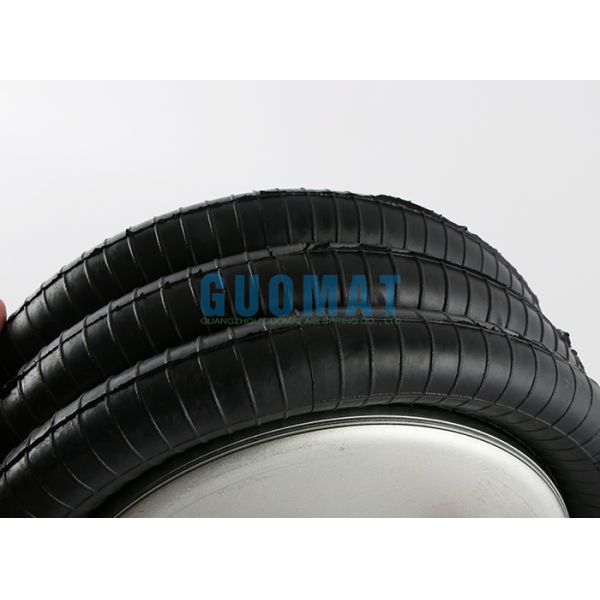

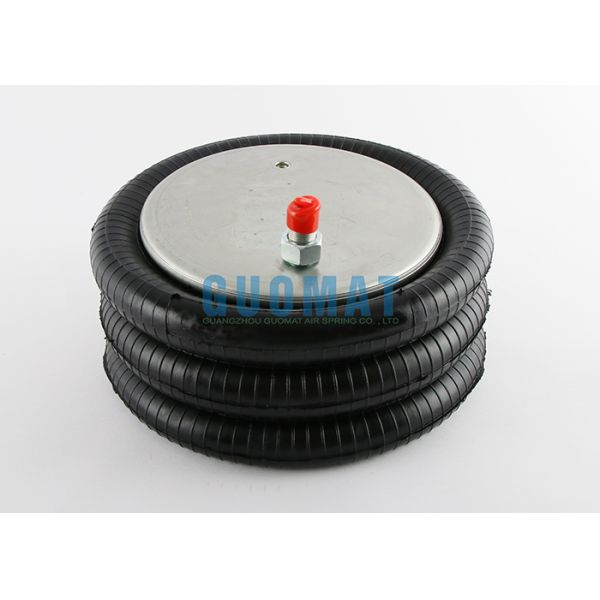

FT 330-29 469 Firestone Rubber Air Spring W01-358-8025 W01-358-8038 Air Bags
Product Introduction
| Item | Value |
| Model No. | 3B8038 |
| Name | Air Spring |
| Spring Type | Double |
| Warranty | 12 Months |
| Color | Black |
| Place of Origin | Guangzhou,China |
| Certification | ISO/TS16949:2009 |
| Material | Rubber+Steel |
| Packing | Neutral Packing |
| MOQ | 1 Pcs |
| Quality | High-Quality |
| Position | Auto/Truck parts/Industrial equipment |
OEM Number / Cross Number
FIRESTONE: W01-358-8025
FIRESTONE: W01-358-8038
CONTITECH: FT 330-29 469
GOODYEAR: 3B12-300
TRIANGLE: 6334/4469
Technical Data
| Nut/Blind Nut |
| Screw and Air Inlet Distance of Top Cover Plate | 140mm |
| Screw Center Distance of Bottom Cover Plate | 157mm |
| Cover Plate |
| Top Cover Plate Diameter | 231mm |
| Bottom Cover Plate Diameter | 231mm |
| Rubber Bellow |
| Rubber Bellows MAX Diameter | 330mm |
| The Working Stroke | MAX 460mm to MIN 117 mm |
| Maximum Height | 460mm |
| Minimum Height | 117mm |
| Compression Height | 343mm |
Industrial Air Spring Maintenance
The core of industrial air spring maintenance lies in ensuring its long-term, stable, and safe operation, thereby extending its lifespan and guaranteeing equipment accuracy. Maintenance work is carried out at both daily and periodic levels. Daily inspection is fundamental, requiring operators to diligently observe the air spring body for scratches, cracks, abnormal wear, or corrosion, while also checking the integrity of upper and lower connecting parts and the tightness of fasteners. During operation, one should use their senses to judge whether the equipment height is stable and to detect any hissing or abnormal friction sounds, as these are often early signs of problems.
Periodic maintenance is more in-depth and must be performed by professionals. This includes cleaning the air spring surface with mild soapy water; the use of chemical solvents is strictly prohibited to prevent damage to the rubber. A crucial step is to perform an airtightness check, i.e., after pressurization, shut off the air supply and observe whether the pressure drops steadily to determine if there is a leak. For the entire system, it is also essential to regularly inspect and maintain the air supply accessories, such as ensuring that the air filter and dryer are functioning properly and providing a clean, dry air supply. This is the lifeline for protecting the internal structure of the air spring and preventing premature aging.
In summary, successful maintenance relies on several key elements: keeping the airbag clean, preventing external physical damage, ensuring the air supply is absolutely dry and clean, and avoiding over-operation under depressurization conditions. Following these principles will maximize performance and reduce the occurrence of malfunctions.
