1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber
Product Description
Item Name: Industrial Air Spring
Model No.: 1B5510
Brand: GUOMAT
Warranty: 12 Months
Type: Convoluted Air Spring
Service Offered: OEM
Suspension System: Air Spring Suspension
Applications: For Industrial Machine
Sample: Available
Type Of Goods: Air Spring/Air Bags/Air Ballons
Material: Imported Natrul Rubber
Operation: Gas-filled
Package: Standard Packing Or Customized
OEM Number/Cross Number
Goodyear OEM Number: 1B5-500
Goodyear OEM Number: 1B 5-500
Goodyear OEM Number: 1B5 500
Goodyear OEM Number: 1B5500
Firestone OEM Number: W01-358-7001
Firestone OEM Number: W01 358 7001
Firestone OEM Number: W013587001
Firestone OEM Number: WO1-358-7001
Firestone OEM Number: WO1 358 7001
Firestone OEM Number: WO13587001
Contitech OEM Number: FS50-5
Contitech OEM Number: FS 50-5
Contitech OEM Number: FS50-5 CI
Contitech OEM Number: FS 50-5 CI
Contitech OEM Number: FS50-5 CI 1/4 NPT
Contitech OEM Number: FS 50-5 CI 1/4 NPT
Contitech OEM Number: FS50-5 CI 1/4 NPT CA
Contitech OEM Number: FS 50-5 CI 1/4 NPT CA
Enidine OEM Number: YI-1B5-500
Enidine OEM Number: YI 1B5-500
Technical Data
| Air Fitting: 1/4" NPT, Centered |
| End Plate Diameter: 3.4" |
| Mounting Holes: Two 3/8"-16 UNC |
| Mounting Hole Spacing: 1.75" Center-to-Center |
| Overall Height: 3.8" Max. |
| Bumper: Not Included / No |
Single Convoluted Air Bellow-1B5
| Assembly Number | Maximum Stroke(in.) | Approximate System Natural Frequency Hz | Design Height Range(in.) |
| 1B5-500 | 1B5-502 | 2.00 | 3.25 | 2.5-3.0 |
| 1B5-510 | 1B5-512 | 3.00 | 2.75 | 2.5-4.0 |
| 1B5-520 | 1B5-521 | 3.00 | 2.67 | 3.5-5.0 |

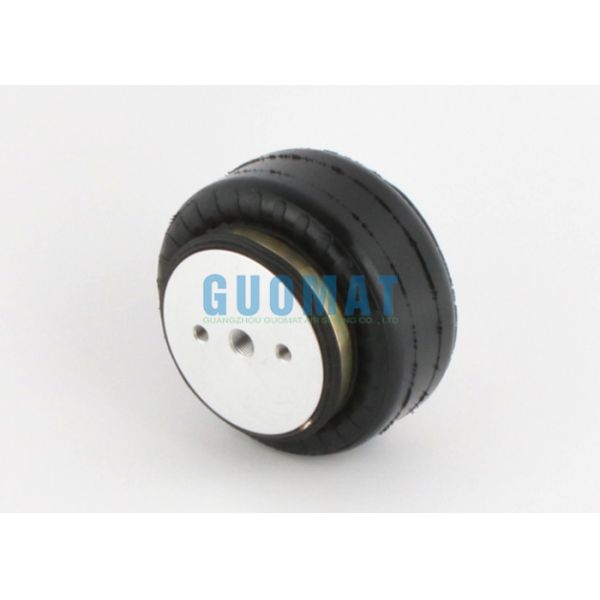

The Picture of 1B5500 Single Convoluted Air Spring
